3M 3M 8445-2.5
3M 8445-2.5
Kirby Risk #: 2577645
UPC: 05400709486, 054007094869, 00054007094869
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

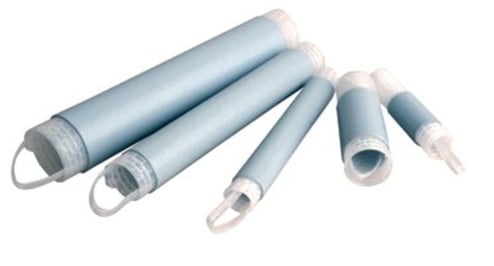

3M™ 8440 Series Cold Shrink Silicone Insulator is an insulating sleeve that is specially formulated from high temperature silicone rubber for moisture protection. It maintains resiliency and pressure, even after years of aging and exposure. This insulator ensures top moisture sealing for medium voltage, air insulated connectors and lugs. It offers resistance against acids, alkalis, fluid splashes, ozone, ultraviolet light and fire. This insulator is ideal for use in sheath repairs and electrical aircraft cables and it provides insulation for inline conductor transition connectors. RoHS 2011/65/EU Compliant.
Modified Industry Description
SILICONE COLD SHRINK CONNECTOR
AD Description
3M™ 054007-09486 8440 Cold Shrink Tubing, 63.5 mm L, Silicon Rubber
Vendor Description
3M™ cold shrink tubes are designed using a unique cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwind) after positioning allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.
Specifications
| Color |
Gray
|
|---|---|
| Country of Origin |
US
|
| Length1 |
63.5 mm
|
| Material |
Silicon Rubber
|
| Number Of Conductors |
1
|
| Series |
8440
|
| Size |
1 AWG; 1/0 AWG; 2 AWG
|
| Special Features |
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-67 to 500 deg F
|
| Type |
Cold Shrink Splice
|
| Voltage Rating |
1 kVAC
|
