3M 3M EPS300-1/4-48
3M EPS300-1/4-48
Kirby Risk #: 2576823
UPC: 05112859756, 051128597569, 00051128597569
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

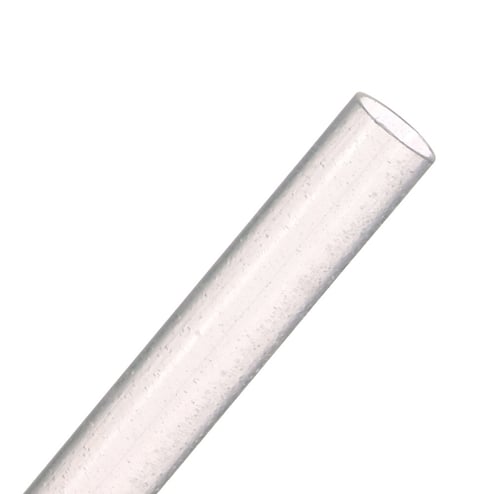

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.
Modified Industry Description
1/4, 3:1 THIN WALL+ADHESIVE, 48IN
AD Description
3M™ EPS300-1/4-48"-Clear-200 Pcs Adhesive Lined Flame-Retardant Non-Corrosive Heat Shrink Tubing, 1/4 in ID Expanded, 0.08 in ID Recovered, 48 in L, Polyolefin, Clear
Vendor Description
3M™ heat shrink tubing EPS-300 is a thin wall tubing offering the advantages of integral, dual wall construction. The tubing is made from flame retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. The heat shrinkable outer wall is selectively irradiation cross linked, while the adhesive maintains high flow and excellent adhesion characteristics.
Specifications
| Color |
Clear
|
|---|---|
| Country of Origin |
US
|
| Length1 |
48 in
|
| Material |
Polyolefin
|
| Outside_Diameter |
0.25
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-67 to 230 deg F
|
| Type |
Adhesive Lined Flame Retardant Non-Corrosive
|
| Voltage Rating |
600 VAC
|
