3M 3M LFV18-8Q


Description

Industry Description

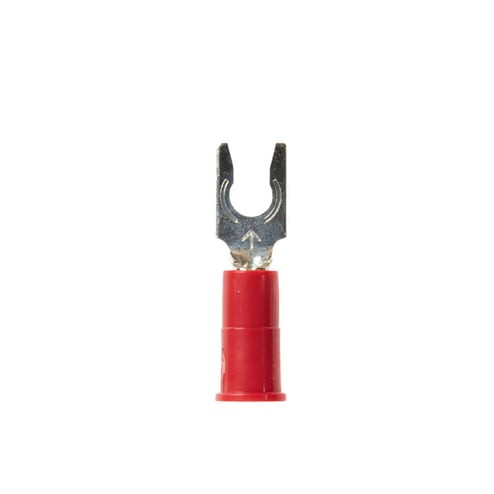

3M™ Highland™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

LOCKING FORK VINYL INSULATED

AD Description

Highland™ 051128-60021 Insulated Locking Fork Terminal, 22 to 18 AWG Conductor, 0.88 in L, Butted Seam Barrel, Copper, Red

Vendor Description

3M™ Highland™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud.

Specifications

Color
Red
Conductor Type
Stranded Copper
Connection
Fork
Conductor Size
22 to 18 AWG
Country of Origin
US
Finish
Electro-Tin Plated
Length1
0.88 in
Material
Copper
Special Features

  • 0.34 in maximum lock width
  • Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Red vinyl-insulated, butted seam barrel ensures a secure fit and offers reliable performance
  • Spring-like tongue firmly fits around the stud
Standard
UL and CSA
Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Insulated Locking
Voltage Rating
600/1000 VAC
