3M 3M LFV10-8Q
3M LFV10-8Q
Kirby Risk #: 2576777
UPC: 05112860016, 051128600160, 00051128600160
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

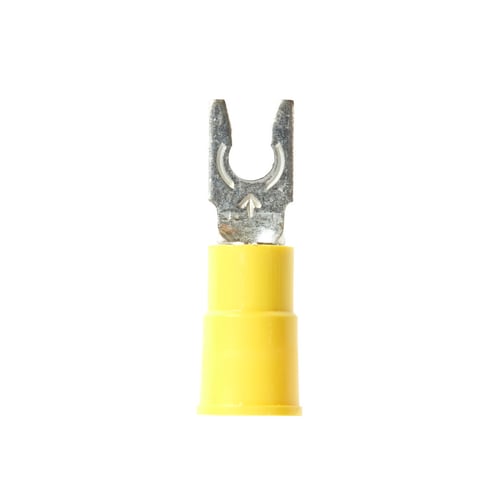

3M™ Highland™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
LOCKING FORK VINYL INSULATED
AD Description
Highland™ 051128-60014 Fork Terminal, 12 to 10 AWG Conductor, Butted Barrel, Yellow
Specifications
| Color |
Yellow
|
|---|---|
| Conductor Type |
Copper/ETP
|
| Connection |
Fork
|
| Conductor Size |
12 to 10 AWG
|
| Country of Origin |
US
|
| Dimensions |
0.32 in W x 0.04 in THK
|
| Length1 |
5.7500
|
| Material |
PVC
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-40 to 221 deg F
|
| Type |
Locking
|
| Voltage Rating |
600 VAC
|
