3M 3M FV10-8Q


Description

Industry Description

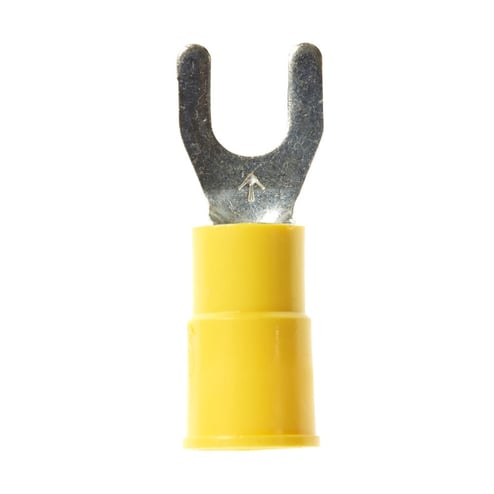

3M™ Highland™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

FORK VINYL INSULATED HIGHLAND BAG

AD Description

3M™ Highland™ 051128-60010 Insulated Standard Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Seam Barrel, Copper, Yellow

Vendor Description

3M™ Highland™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs.

Specifications

Color
Yellow
Conductor Type
Stranded Copper
Conductor Size
12 to 10 AWG
Country of Origin
US
Finish
Electro-Tin Plated
Length1
1.03 in
Material
Copper
Special Features

  • Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
  • Butted seam barrel ensures a secure fit and offers reliable performance
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Insulated Standard
Voltage Rating
600/1000 VAC
