3M 3M FDV10-250Q


Description

Industry Description

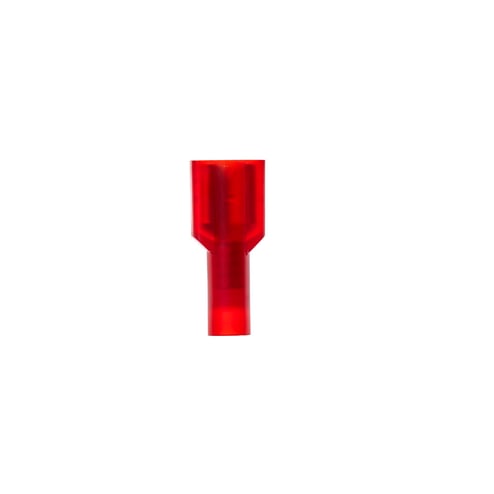

3M™ Highland™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

FEMALE DISCONNECT VINYL INS 25/BAG

AD Description

Highland™ FDV10-250Q Standard Female Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Brass, Yellow, Insulated

Vendor Description

3M™ Highland™ color coded standard female disconnect terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect.

Specifications

Color
Yellow
Connection
Disconnect
Conductor Size
12 to 10 AWG
Country of Origin
US
Dimensions
0.95 in L
Finish
Tin Plated
Length1
5.7500
Material
Brass
Special Features

  • 25 terminals/bag
  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Free hanging (in-line) mounting
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Vinyl insulated
  • Yellow vinyl insulated, butted seam barrel with a funnel designed, polyvinyl chloride sleeve offers easy insertion of wires
Standard
UL and CSA
Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Insulated Standard
Voltage Rating
600/1000 VAC
