3M 3M BFV14-6Q


Description

Industry Description

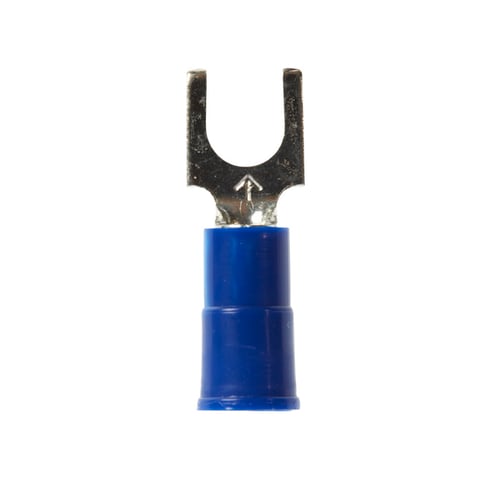

3M™ Highland™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

VINYL BLOCK FORK HIGHLAND BAG

AD Description

Highland™ 051128-59991 Insulated Block Fork Terminal, 16 to 14 AWG Conductor, 0.85 in L, Butted Seam Barrel, Copper, Blue

Vendor Description

3M™ Highland™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance.

Specifications

Color
Blue
Conductor Type
Stranded Copper
Connection
Fork
Conductor Size
16 to 14 AWG
Country of Origin
US
Finish
Electro-Tin Plated
Length1
0.85 in
Material
Copper
Special Features

  • Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
  • Blue vinyl-insulated, butted seam barrel ensures a secure fit and offers reliable performance
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
Standard
UL and CSA
Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Insulated Block
Voltage Rating
600/1000 VAC
