3M 3M MU18-8FLX
3M MU18-8FLX
Kirby Risk #: 2576305
UPC: 05112859016, 051128590164, 00051128590164
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

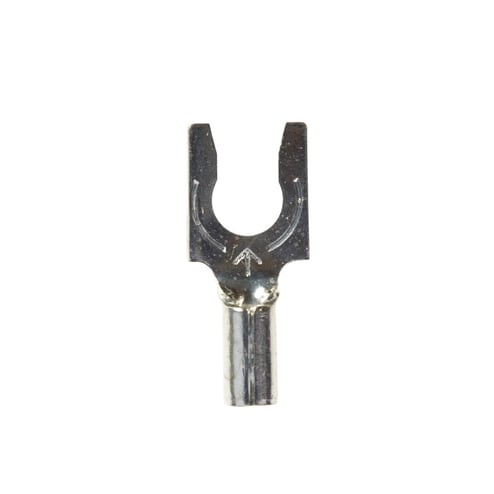

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
LOCKING FORK NON-INSULATED,
AD Description
Scotchlok™ 051128-59016 Locking Fork Terminal, 22 to 18 AWG Conductor, 0.68 in L, Butted Barrel, ETP Copper, Red
Specifications
| Color |
Red
|
|---|---|
| Conductor Type |
Non-Insulated
|
| Conductor Size |
22 to 18 AWG
|
| Country of Origin |
USA
|
| Dimensions |
0.3 in W x 0.03 in THK
|
| Length1 |
0.68 in
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
347 deg F
|
| Type |
Locking
|
| Voltage Rating |
600 to 1000 VAC
|
