3M 3M M10-6FX
3M M10-6FX
Kirby Risk #: 2576294
UPC: 05112858861, 051128588611, 00051128588611
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

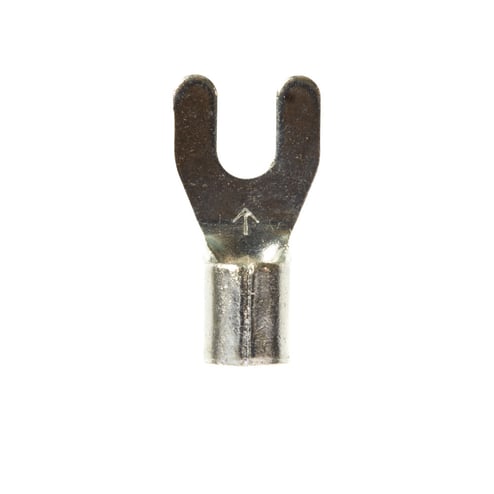

3M™ Scotchlok™ Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
FORK NON-INSULATED, 50/BOTTLE
AD Description
Scotchlok™ 051128-58861 Standard Fork Terminal, 12 to 10 AWG Conductor, 0.73 in L, Brazed Barrel, ETP Copper, Yellow
Specifications
| Color |
Yellow
|
|---|---|
| Conductor Type |
Non-Insulated
|
| Conductor Size |
12 to 10 AWG
|
| Country of Origin |
USA
|
| Dimensions |
0.38 in W x 0.04 in THK
|
| Length1 |
0.73 in
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
347 deg F
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
