3M 3M MU14-10RX


Description

Industry Description

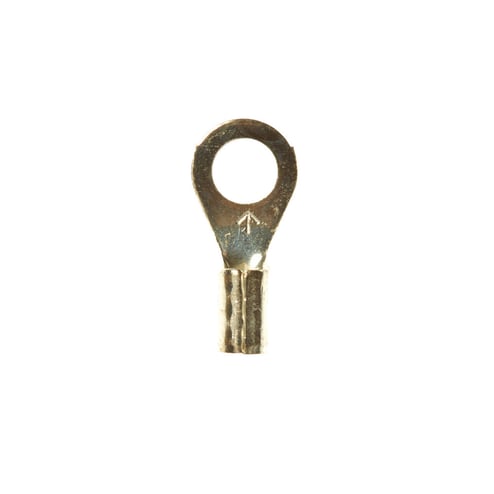

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

RING NON-INSULATED, 100/BOTTLE

AD Description

3M™ Scotchlok™ 051128-59005 Non-Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.7 in L, Butted Seam Barrel, Copper, Blue

Vendor Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.

Specifications

Color
Blue
Conductor Size
16 to 14
Country of Origin
US
Finish
Tin Plated
Length1
0.7
Material
Copper
Special_Features

  • 100 terminals/bottle
  • 500 terminals/case
  • Beveled mouth offers easy insertion of wires
  • Butted seam barrel ensures a secure fit and offers reliable performance
  • Crimp termination
  • Free hanging (in-line) mounting
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard style ring tongue fits around the stud

Standard
UL and CSA
Sub_Brand
3M
Temperature_Rating
347
Type
Non-Insulated Standard
Voltage Rating
600/1000
