3M 3M MU18-187DFX
3M MU18-187DFX
Kirby Risk #: 2576268
UPC: 05112859014, 051128590140, 00051128590140
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

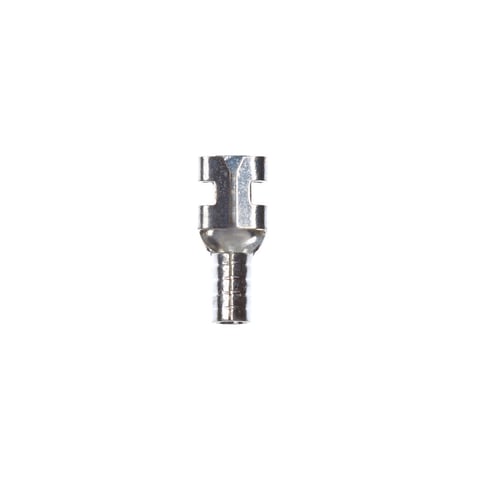

3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
FEMALE DISCONNECT NON-INSULATED,
AD Description
Scotchlok™ MU18-187DFX Standard Disconnect Tab, 22 to 18 AWG Conductor, 3/16 in Tab, 0.085 in ID x 0.25 in L Butted Barrel, ETP Copper, Red, Non-Insulated
Specifications
| Color |
Red
|
|---|---|
| Conductor Type |
Non-Insulated
|
| Conductor Size |
22 to 18 AWG
|
| Country of Origin |
USA
|
| Dimensions |
0.2 in THK x 0.187 in W Pad
|
| Length1 |
9.3750
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
347 deg F
|
| Type |
Standard
|
| Voltage Rating |
600 VAC
|
