3M 3M MVU18-187DMX
3M MVU18-187DMX
Kirby Risk #: 2576267
UPC: 05112859012, 051128590126, 00051128590126
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

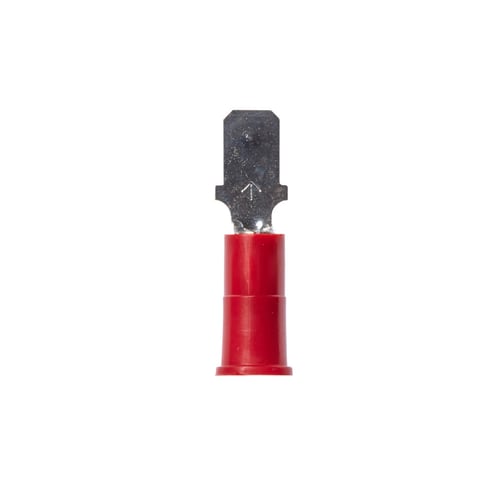

3M™ Scotchlok™ Color-Coded Standard Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
MALE DISCONNECT VINYL INSULATED,
AD Description
Scotchlok™ MVU18-187DMX Standard Disconnect Tab, 22 to 18 AWG Conductor, 3/16 in Tab, 0.08 in ID x 0.24 in L Butted Barrel, ETP Copper, Red
Specifications
| Color |
Red
|
|---|---|
| Conductor Type |
Insulated
|
| Conductor Size |
22 to 18 AWG
|
| Country of Origin |
USA
|
| Dimensions |
0.02 in THK x 0.187 in W Pad
|
| Length1 |
9.3750
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-40 to 221 deg F
|
| Type |
Standard
|
| Voltage Rating |
600 VAC
|
