3M 3M MU14BCX


Description

Industry Description

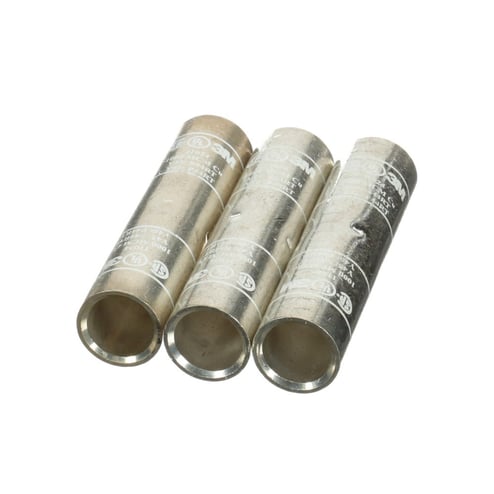

3M™ Scotchlok™ Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

BUTT CONNECTOR NON-INSULATED,

AD Description

Scotchlok™ 051128-59007 Standard Butt Connector, 16 to 14 AWG Conductor, 0.56 in L, Butted Barrel, Copper, Blue

Specifications

Color
Blue
Conductor Size
16 to 14 AWG
Country of Origin
US
Length1
0.56 in
Material
Copper
Special Features

  • 0.03 in thickness
  • Crimp connection
  • Must be crimped at both ends
  • Uses chamfered barrel ends to provide fast, easy wire insertion from both ends and a built-in wire stop for correct positioning
Sub_Brand
3M
Type
Standard
Voltage Rating
600 VAC
