3M 3M MV4BCX


Description

Industry Description

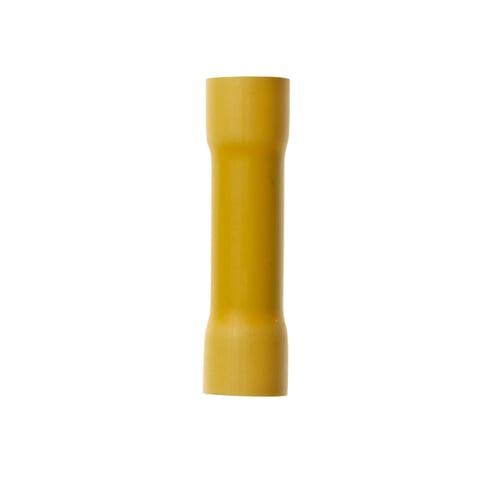

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

BUTT CONNECTOR VINYL INSULATED,

AD Description

Scotchlok™ 051128-59003 Standard Butt Connector, 4 AWG Conductor, 2.17 in L, Brazed Barrel, Copper, Yellow

Specifications

Color
Yellow
Conductor Size
4 AWG
Country of Origin
USA
Dimensions
0.48 in OD
Length1
2.17 in
Material
Copper
Special Features

  • 0.075 in thickness
  • Crimp connection, vinyl insulation
  • Must be crimped at both ends
  • Uses chamfered barrel ends to provide fast, easy wire insertion from both ends and a built-in wire stop for correct positioning

Sub_Brand
3M
Type
Standard
Voltage Rating
600 VAC
