3M 3M MVU18-47PX-A


Description

Industry Description

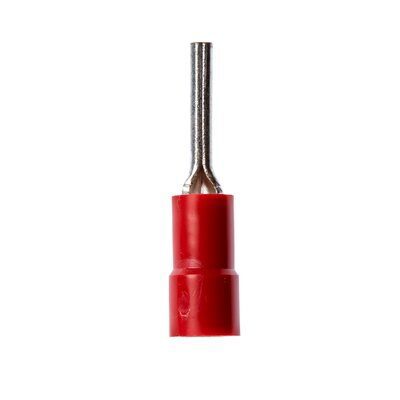

3M™ Scotchlok™ Color-Coded Pin Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands a maximum temperature of 167 degrees F (75 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

PIN VINYL INSULATED, 100/BOTTLE

AD Description

Scotchlok™ 051128-58871 Butted Seam Barrel Pin Terminal, 22 to 18 AWG Conductor, 0.075 in Dia x 0.47 in L Pin, Copper, Red

Vendor Description

3M™ Scotchlok™ Pin Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping.

Specifications

Color
Red
Conductor Size
22 to 18 AWG
Country of Origin
TW
Length1
9.3750
Material
Copper
Special Features

  • 600 V rated for building wire and 1000 V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Vinyl insulation
Sub_Brand
3M
Temperature_Rating
167 deg F
Type
Butted Seam Barrel
Voltage Rating
600 to 1000 VAC
