3M 3M MVU14-156DMX-A


Description

Industry Description

3M™ Scotchlok™ Color-Coded Standard Bullet-Style Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The snap plug has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

MALE DISCONNECT VINYL INSULATED,

AD Description

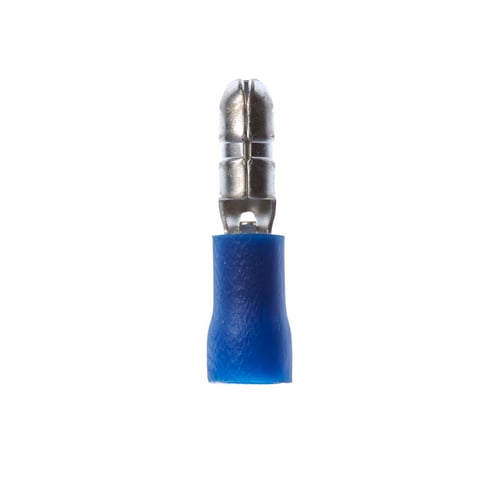

Scotchlok™ MVU14-156DMX-A Bullet Snap Plug Disconnect Tab, 16 to 14 AWG Conductor, Butted Barrel, ETP Copper, Blue

Specifications

Color
Blue
Conductor Type
Insulated
Conductor Size
16 to 14 AWG
Country of Origin
TW
Dimensions
0.156 in W Pad
Length1
9.3750
Material
ETP Copper
Special Features

  • Attached to mating part by tongue of female part slipping over male tab
  • Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect, Male connection
  • Vinyl insulated

Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Bullet Snap Plug
Voltage Rating
600 VAC
