3M 3M MVU10-6FBX
3M MVU10-6FBX
Kirby Risk #: 2576242
UPC: 05112858855, 051128588550, 00051128588550
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

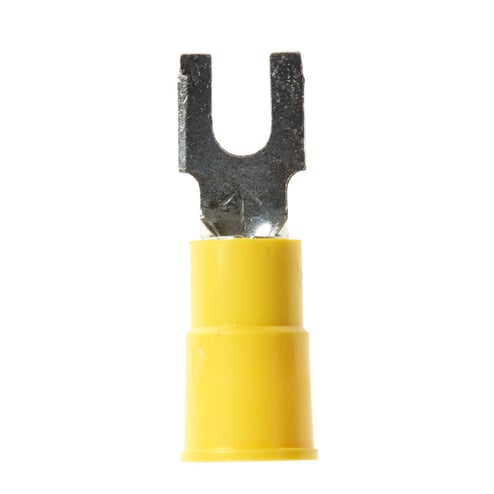

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
BLOCK FORK VINYL INSULATED,
AD Description
Scotchlok™ 051128-58855 Block Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Barrel, ETP Copper, Yellow
Vendor Description
Block forks have the same strength as the standard fork, but are designed to use in a terminal block because their sides lie flat against the barrier portion of the terminal block.
Specifications
| Color |
Yellow
|
|---|---|
| Conductor Type |
Insulated
|
| Conductor Size |
12 to 10 AWG
|
| Country of Origin |
USA
|
| Dimensions |
0.32 in W x 0.04 in THK
|
| Length1 |
1.03 in
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-40 to 221 deg F
|
| Type |
Block
|
| Voltage Rating |
600 to 1000 VAC
|
