3M 3M MU10-55PX-A


Description

Industry Description

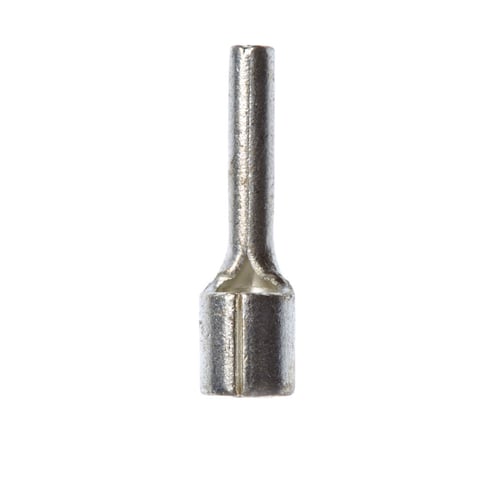

3M™ Scotchlok™ Pin Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

PIN NON INSULATED, 50/BOTTLE

AD Description

3M™ Scotchlok™ 051128-58754 Pin Terminal, 12 to 10 AWG Conductor, 0.11 in Dia x 0.55 in L Pin, Yellow

Vendor Description

3M™ Scotchlok™ pin terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 deg F. Copper construction offers good conductivity and a tin plated finish resists corrosion. 3M™ Scotchlok™ pin terminal has a non-insulated, butted seam barrel with a beveled mouth to guide the wire into position easily.

Specifications

Country of Origin
TWN
Length1
9.3750
Material
Non-Insulated
Special Features

  • 600 VAC rated for building wire and 1000 VAC for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
  • Non-insulated, butted seam barrel ensures a secure fit and offers reliable performance
  • Provides quick connection for set screws or clamps that are used to make electrical contact
Sub_Brand
3M
Type
Pin
