Siemens Siemens 17CUB92BA11


Description

Industry Description

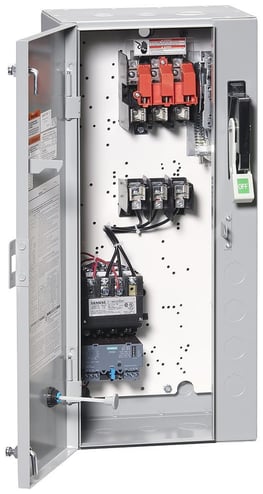

Non-reversing motor starter, Size 0, Three phase full voltage, Solid-state overload relay, OLR amp range 0.75-3.4A, 110 120/220 240VAC 60Hz coil, Combination type, 30A fusible disconnect, 30A/600V fuse clip, Enclosure NEMA type 1, Indoor general purpose use, Standard width enclosure

AD Description

Siemens 17CUB92BA11 SZ 0 Class 17 Full Voltage Heavy Duty Non-Reversing Combination Starter With 30 A, 600 V Fusible Disconnect Switch, 110 VAC, 110 to 120 VAC, 190 to 220 VAC, 220 to 240 VAC Coil, 3 Poles, NEMA 1

Specifications

Country of Origin
US
Special Features

  • 1-1/2 hp at 460/480 VAC, 2 hp at 575/600 VAC
  • 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
  • 110 to 120 VAC, 220 to 240 VAC at 60 Hz, 110 VAC, 190 to 220 VAC at 50 Hz coil voltage
  • Box lug line side, screw terminal load side outgoing feeder connection
  • Easy to install
  • Heavy duty quarter turns
  • Industrial type disconnect handle
  • Manufactured with cold forming "TOX" process
  • Visible blade disconnect
