Panduit Panduit PCSB600-6-2Y


Description

Industry Description

Multi-Tap connector, double-sided, clear insulation, 6 ports, 600 kcmil - #6 AWG STR.

Modified Industry Description

Multi-Tap Connector, Double-Sided,

AD Description

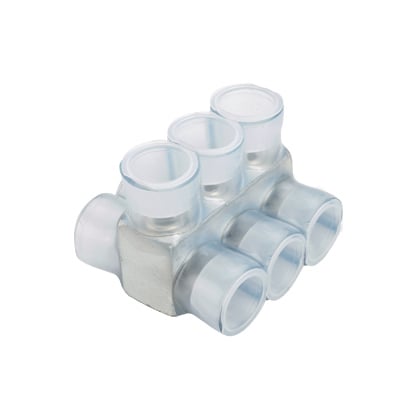

Panduit® Pan-Lug™ PCSB600-6-2Y 6-Port Double Sided Multi-Tap Connector With Clear PVC Insulation, 6 AWG to 600 kcmil Stranded Aluminum/Copper Stranded Conductor, Screw Installation, Aluminum

Specifications

Application
Aluminum or Copper Code Conductors
Brand Name
Panduit
Conductor_Range_Main_Primary
600 kcmil - #6 AWG STR
Conductor Type
Stranded
Conductor Size
6 AWG to 600 kcmil Stranded Al/Cu
Country of Origin
USA
Insulation
Clear PVC
Material
Aluminum
Number_Of_Holes
6
Number_Of_Mounting_Holes
NA
Number_Of_Ports
6
Package_Quantity
1
Special Features

  • Body made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
  • Dual sided entry allows offset and opposite entry for primary and secondary conductors
  • Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
  • Flexible design can be used as a tap, splice or dead end connector
  • Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
  • Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
  • Wide wire range taking capability minimizes inventory requirements
Standard
486A-486B File #E52164
Sub_Brand
Panduit
Temperature_Rating
90
Type
6-Port Double Sided
Voltage Rating
600
