Burndy Burndy BIBS3504DB


Description

Industry Description

Direct Burial Unitap, 350 Kcmil -12 AWG Str., 5.03 in L, Designed specifically for direct burial applications.

AD Description

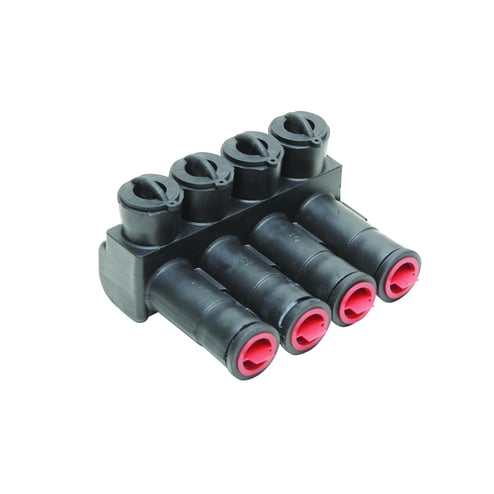

BURNDY® UNITAP™ BIBS3504DB 4-Port Type BIBS Multi-Port Connector, 12 AWG to 350 kcmil Run/Main, Aluminum/Copper/Stranded Conductor, Aluminum

Vendor Description

These rubber insulated, dual rated connectors are for use in networks up to 600V. Suitable in light fixture pole bases in commercial, industrial or residential markets. Distribution within strip malls, for use in any multitenant facility. No taping or heat shrink required.

Specifications

Application
For Outside Direct Burial
Conductor Size
12 AWG-350 KCMIL
Country of Origin
US
Length1
5.0300
Material
Aluminum
Special Features

  • 12 AWG to 350 kcmil aluminum, 12 AWG to 350 kcmil copper stranded conductor wire
  • Covering is the highest quality EPDM rubber
  • Dual rated for aluminum or copper conductors
  • Each unit is individually marked for ease of identification
  • Meets ANSI C119.1 and C119.4 requirements
  • Silicone provided for conductor insertion
  • Suitable for direct burial
  • Supplied with aluminum setscrews
  • Supplied with oxide inhibitor preinstalled
Standard
Buy American Act Compliant (All status valid till December 2024)
Sub_Brand
UNITAP
Temperature_Rating
194
Type
BIBS, Multi-Port - Direct Burial
