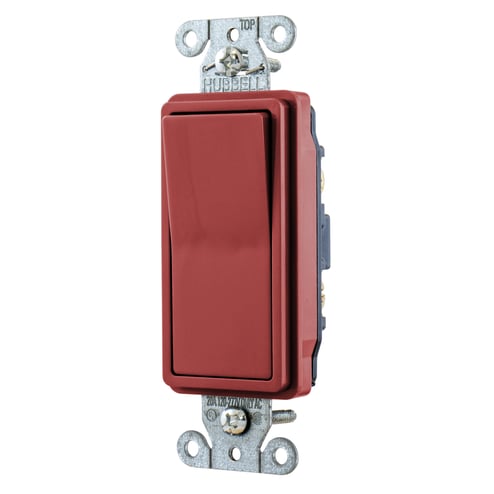

Hubbell Hubbell DS320R


Description

Industry Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSeries, Rocker Switch, General Purpose AC, Three Way, 20A 120/277V AC,Back and Side Wired, Red

Modified Industry Description

SWITCH, DECO SER, 3W, 20A 120/277V,

AD Description

Wiring Device-Kellems StyleLine® DS320R 3-Way Heavy Duty Standard Sized Decorator Switch, 120/277 VAC, 20 A, 5540 W, 1 to 2 hp Power Rating, 2-Position Contact

Specifications

Action
Positive Snap
Actuator
Rocker
Amperage Rating
20
Application
Commercial Heavy Duty
Brand Name
Hubbell
Color
Red
Connection
Terminal Screw
Contact_Configuration
2-Position
Contact_Rating
Per UL 20
Country of Origin
CN
Enclosure
NEMA WD1
Environmental_Conditions
-40 to 75 deg C Operating Temperature, Indoor Dry Unless Protected By Additional Means
Indicator
None
Material
Composite
Mounting
Threaded
Number_Of_Poles
1
Operating_Cycles
50000
Operating_Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Size
Standard Sized
Special Features

  • Automatic self-grounding staple
  • Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
  • Copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
  • Elastomer rocker assures quiet operation and precise timing
  • Engineered thermoplastic housing is impact resistant for heavy duty commercial environments
  • Heavy duty nylon toggle resists abuse and chemical attack making it suitable for use in the toughest environments
  • Large brass binding head screws with deep slots secure wire connections
  • One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
  • Permanently lubricated assembly provides long life and trouble free operation
  • Prominent amperage marking on mounting strap allows easy identification of rating
  • Silver alloy contacts reduce contact erosion and prevent welding, providing long life
  • Stainless steel automatic grounding staple assures grounding continuity between mounting strap and metal wall box
  • Standard product
  • Steel zinc plated mounting strap provides protection against corrosion
  • Steel, zinc plated bridge is corrosion resistant
  • Strip gauge for accurate wiring
  • Thread cleaning captive mounting screw
Standard
NEMA WD1, UL20
Sub_Brand
Hubbell Wiring Device-Kellems
Type
3-Way Heavy Duty Standard Sized
Voltage Rating
120/277
Wattage
5,540
