3M 3M MV14-6FX


Description

Industry Description

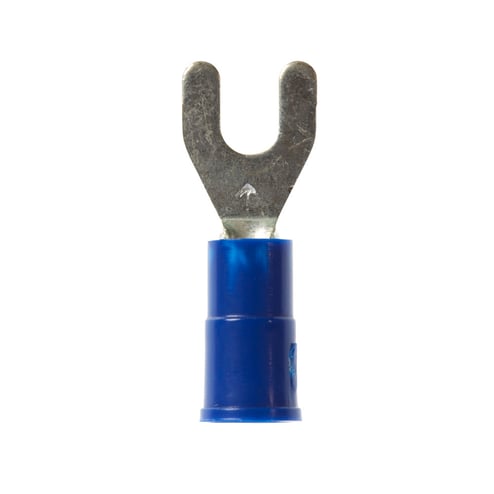

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

Fork VINYL INSULATED Terminal, 100/BOTTLE

AD Description

3M™ Scotchlok™ 051128-58738 Insulated Standard Fork Terminal, 16 to 14 AWG Conductor, 0.9 in L, Brazed Seam Barrel, Vinyl, Blue

Vendor Description

3M™ Scotchlok™ Color Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs.

Specifications

Brand Name
3M
Color
Blue
Conductor Size
16 to 14
Country of Origin
US
Finish
Electro Tin Plated
Label_Description
FORK VINYL INSULATED, 100/BOTTLE
Material
Vinyl
Operating_Voltage
100 per bottle
Package_Quantity
100
Special Features

  • Abrasion and corrosion resistant, flared, vinyl sleeve insulation ensures easy crimping
  • Blue vinyl insulated, butted seam barrel ensures a secure fit and offers reliable performance
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Funnel designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Wider tongue design for use on free standing studs
Standard
UL and CSA
Stud_Size
#6
Sub_Brand
3M
Terminal_Size
16 - 14 AWG
Type
Insulated Standard
Voltage Rating
600/1000
