Southwire Southwire XHHW-STR-600-BLA-CU-1000FT
Southwire XHHW-STR-600-BLA-CU-1000FT
Kirby Risk #: 2545603
UPC: 03288624271, 032886242717, 00032886242717
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
600-61 CU (304.024mm2) SIMpull(TM) XHHW-2 BLACK 1000 FT
Modified Industry Description
600-61(304 024mm2)CU SIMpull(TM)
AD Description

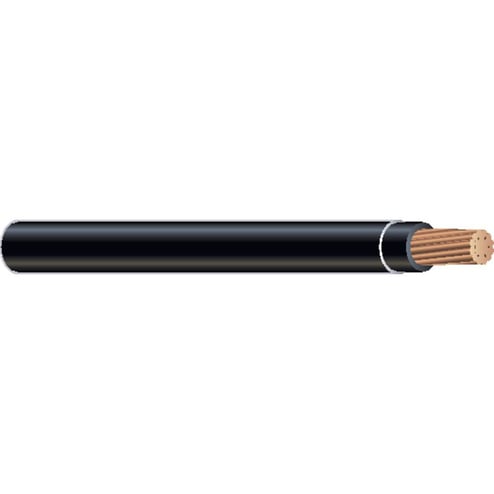

Southwire® NoLube™ SIMpull™ 11309202 Type XHHW-2 Building Wire, 600 VAC, (1) 600 kcmil Stranded Copper Conductor, 1000 ft Reel L, Black
Vendor Description
Southwire® SIMpull® XHHW-2® copper conductors are annealed (soft) copper. Insulation is an abrasion, moisture, and heat resistant thermoset cross-linked polyethylene (XLP). Conductor sizes 8 AWG and larger are marked sunlight resistant. Colors are available and may be subject to economic order quantity.
Specifications
| Amperage Rating |
475
|
|---|---|
| Application |
Commercial
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
600 kcmil
|
| Country of Origin |
USA
|
| Length1 |
1000 ft Reel
|
| Number Of Conductors |
1
|
| Outside_Diameter |
1033
|
| Special Features |
|
| Sub_Brand |
Southwire
|
| Temperature_Rating |
90
|
| Type |
Type XHHW-2
|
| Voltage Rating |
600
|
