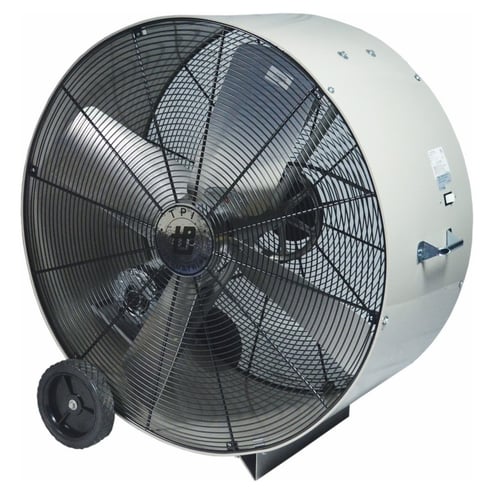

TPI TPI PB48BHL


Description

Industry Description

48 IN Belt Drive Portable Blower, Speed- 390 RPM, 120 V, 1 PH, 13.2/6.6 AMP, Wheel Diameter- 10 IN, AC Motor, Explosion Proof Motor Enclosure, Floor Mounting, High Density Polyethylene Housing, 1/2 HP

Modified Industry Description

48IN BELT DRIVE PORTABLE BLOWER, 1

AD Description

TPI PB48BHL 1-Phase Belt Drive Explosionproof Standard Portable Blower, 120 VAC, 1 hp, 22700 cfm, 48 in, Steel Propeller, Domestic

Specifications

Amperage Rating
13.2 A, 6.6 A
Application
Indoor-Industrial/Institutional/Food Service
Country of Origin
US
Horsepower
1
Length1
54.0000
Mounting
Floor
Number Of Conductors
3
Phase
1
Size
48 IN
Special Features

  • 10 in Dia wheels
  • Aluminum, 4 paddle blade (48 in PB / PBS have steel blade)
  • Ball bearing
  • Corrosion and dent proof high density polyethylene housing
  • External junction boxes on dual voltage models allow units to be wired for either voltage without removing guards
  • Floor mounting
  • Flow rate is measured 2 ft from face of fan
  • Hazardous location models have explosion proof motors, metal housings and external junction boxes rated for class I, group D and class II, groups E, F and G
  • Metal housings and external junction boxes rated for CL
  • Permanent split capacitor
  • Permanently lubricated motor
  • Rocker switch on 120 VAC, 1-phase models
  • SJT type 3 conductor, 12 ft long cord on 120 VAC, 1-phase models, no cord on dual voltage models
  • Spiral wire front and rear guards
Standard
UL Listed;OSHA
Sub_Brand
TPI
Type
1-Phase Belt Drive Explosionproof Standard
Voltage Rating
120
