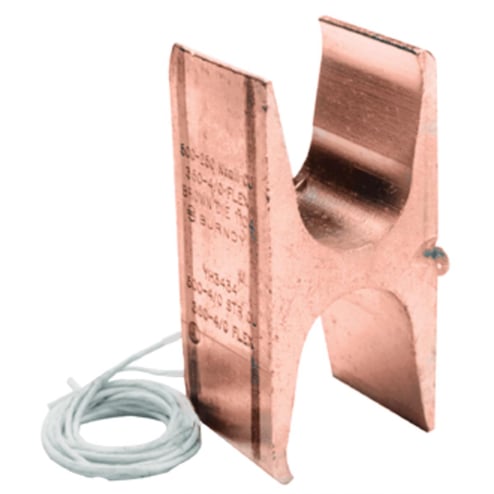

Burndy Burndy YH298C


Description

Industry Description

Copper Compression H Tap, 250 kcmil-2 AWG (Main ), 8-14 AWG (Tap 1 & Tap 2), Tin Plated.

AD Description

BURNDY® CRIMPIT™ YH298C Type YH Compression H-Tap Connector, Figure H, 2 Taps, 2 AWG to 250 kcmil Main/Run, 14 to 8 AWG Tap, Copper

Specifications

Application
For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
Country of Origin
US
Finish
Tin Plated
Length1
0.9000
Material
Copper
Special Features

  • 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 kcmil conductor run size
  • 8, 12, 10, 14 AWG tap size
  • All (B/B, B/I, I/B, I/I) combinations acceptable each connector has many copper cable combination applications allowing maximum flexibility for the design and installation of a system
  • Balance may be used or left empty
  • Color code on the connector matches installation die - provides matched system for fast and easy installation
  • Die index embossed on connector after completion of crimp
  • For use with Y750 tool, U654 die, Y46 tool, U654 die with puadp-1 adapter and P654 die
  • Provides maximum design and installation flexibility
  • Recommended flame retardant type CFFR insulating covers meet oxygen index 28 and UL94 V-0 requirements
  • Simplifies installation, reducing installed cost
  • Tap grooves function independently from each other
  • Third hand constrains conductors while installer completes crimp, included with each connector
  • Use of one tap is required
Standard
UL467
Sub_Brand
CRIMPIT
Temperature_Rating
194
Type
Compression Taps
Voltage Rating
35,000
