Hubbell Hubbell IG15CR


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Isolated Ground Duplex, Commercial Grade, Corrosion Resistant, 15A 125V,2-Pole 3-WireGrounding, 5-15R, Back and Side Wired, Orange

Modified Industry Description

COMM 15A SIDE WIRED IG DUPLEX OR

AD Description

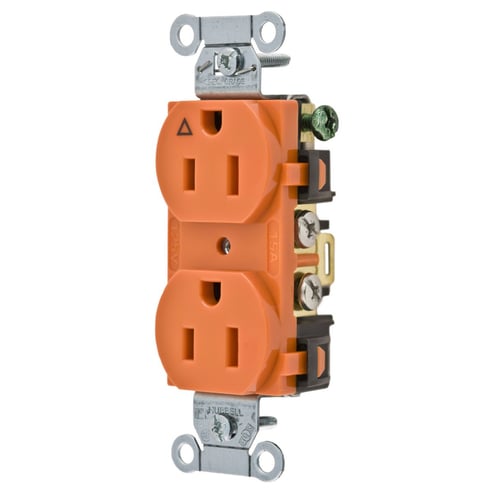

Wiring Device-Kellems SpikeShield® IG15CR Corrosion-Resistant Duplex Isolated Ground Standard Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Orange

Vendor Description

Hubbell® patented the first isolated ground receptacle. Today - when a clean, noise free ground is more important than ever - Hubbell® is still setting the standard. Hubbell® uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.

Specifications

Amperage Rating
15
Application
Commercial Specification Grade
Color
Orange
Connection
Back and Side Wired Screw Terminals
Conductor Size
#14 AWG to #12 AWG
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Length1
4.2000
Material
Thermoplastic
Mounting
Screw Mount
NEMA_Rating
5-15R
Number_Of_Poles
2
Phase
1
Series
Commercial Specification Grade
Size
Standard Sized Product
Special Features

  • Amperage and voltage clearly indicated
  • Automatic self-grounding clip assures ground continuity between mounting strap and metal wall box
  • Back and side wiring capability provides easy installation with stranded or solid wire
  • Dimensionally stable, reinforced thermoplastic polyester provides impact strength in addition to heat and flame resistance
  • Green grounding screw connected directly to the grounding contacts
  • IG triangle on the face of the receptacle clearly indicates isolated ground device
  • Impact resistant nylon smooth face
  • Insulation barrier construction is first patented by Hubbell® isolates ground contacts from the mounting strap
  • Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion
  • Triple wipe contacts
  • Wraparound, locked on brass mounting strap provides additional support strength for receptacle assembly
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Traditional Duplex
Voltage Rating
125
Wattage
1,875
