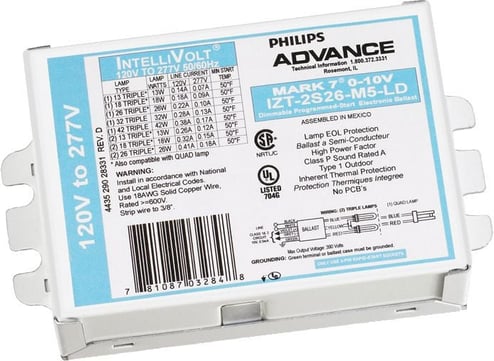

Philips Advance Philips Advance IZT2T42M5LD35M


Description

Industry Description

Ballast, Dimming, Lamp Type: CFL, Ballast Type: Controllable, Voltage: 120-277, Wattage: 42, 2 LD, MK7

Modified Industry Description

ELECTRONIC DIMMING BALLAST FOR 2 26W CF 4 PIN 120 TO 277V

AD Description

Advance Mark 7 0-10V IZT2T42M5LD35M Controllable Electronic Dimmable Compact Fluorescent Ballast, CFL Lamp, 42 W Lamp, 120 to 277 VAC, Programmed, 0.03 to 1 Ballast Factor

Vendor Description

The MARK 7 0-10V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, MARK 7 0-10V ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensors and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.

Specifications

Amperage Rating
0.36 to 0.82
Ballast_Factor
0.03 to 1
Brand Name
Philips Advance
Country of Origin
USA
DIMMABLE
True
Frequency_Rating
50/60
Lamp_Type
CFTR42W
Material
Metal
Number_Of_Lamps
2
Power_Factor
0.99
Special Features

  • 20 to 24 dB average ambient noise level
  • Available in linear fluorescent and 4-pin compact fluorescent models
  • Blue color label identification
  • Compatible with controls from numerous manufacturers without using standards 0 to 10 VDC controls
  • Full range continuous dimming (100% light output down to 5% - T5HO to 1%)
  • High power factor
  • Ideal for frequent switching applications such as occupancy sensors and daylight harvesting - programmed start operation
  • IntelliVolt technology (120 to 277 VAC, 50/60 Hz)
  • Length mounting feet with SmartMate® dual entry color coded connectors
  • Triple CFL series lamp connection

Start_Type
Programmed
Sub_Brand
Philips Advance
Total_Harmonic_Distortion
10%
Vendor
Signify
Voltage Rating
120 to 277
Wattage
18 to 98
