Bussmann Bussmann DFJ-8
Bussmann DFJ-8
Kirby Risk #: 2536622
UPC: 05171265325, 051712653251, 00051712653251
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Bussmann
Description
Industry Description
8AMP 600V J DRIVE FUSE
Modified Industry Description
8A 600V - J DRIVE FUSE
AD Description

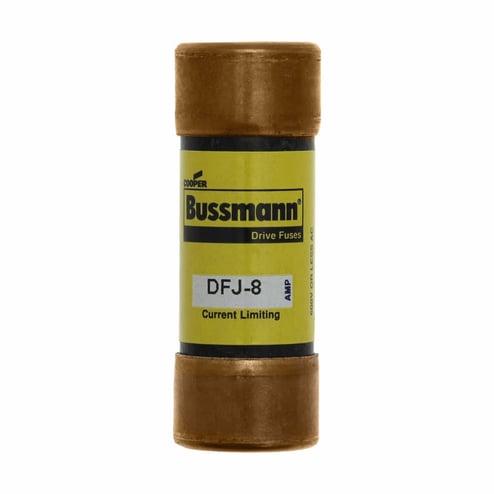

Bussmann DFJ-8 Current Limiting High Speed Drive Fuse, 8 A, 600 VAC/450 VDC, 200/100 kA, Class J, Cylindrical Body
Vendor Description
The Bussmann series DFJ drive fuse is a high speed, current limiting fuse that provides maximum protection for AC and DC drives and controllers and meet NEC® branch circuit protection requirements. The drive fuse has the lowest I2t of any branch circuit fuse to protect power semiconductor devices that utilize diodes, GTOs, SCRs and SSRs.
Specifications
| Amperage Rating |
8
|
|---|---|
| Application |
Protection of AC and DC Drives, Power Semi-Conductor Devices
|
| Brand Name |
Bussmann
|
| Connection |
Ferrule End X Ferrule End
|
| Country of Origin |
MX
|
| Element |
Single
|
| Interrupt_Rating |
200/100
|
| Material |
Melamine
|
| Package_Quantity |
1.000
|
| Size |
0.81 In Diameter X 2.25 In Length
|
| Special Features |
|
| Standard |
UL 248-8, CSA C22.2, CE
|
| Sub_Brand |
Cooper Bussmann
|
| Type |
Current Limiting High Speed
|
| Voltage Rating |
600 VAC/450 VDC
|
