3M 3M MN10BCX


Description

Industry Description

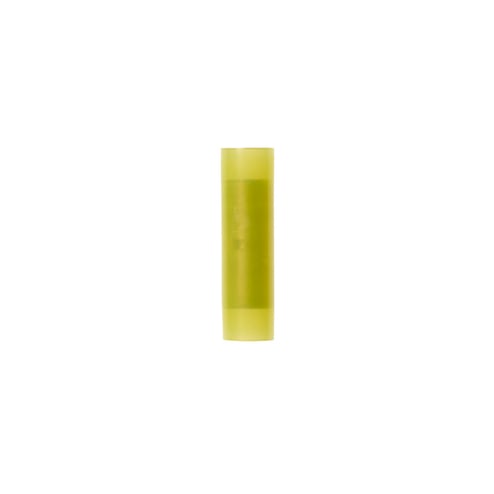

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a nylon-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

BUTT CONNECTOR SEAMLESS NYLON

AD Description

Scotchlok™ 051128-58723 Standard Butt Connector, 12 to 10 AWG Conductor, 1.2 in L, Seamless Barrel, Copper, Yellow

Specifications

Color
Yellow
Conductor Size
12 to 10 AWG
Country of Origin
US
Dimensions
7/32 in OD
Length1
1.2 in
Material
Copper
Special Features

  • 0.038 in thickness
  • Crimp connection, nylon insulation
  • Must be crimped at both ends
  • Uses chamfered barrel ends to provide fast, easy wire insertion from both ends and a built-in wire stop for correct positioning

Standard
UL and CSA
Sub_Brand
3M
Type
Standard
Voltage Rating
600 VAC
