3M 3M 5681


Description

Industry Description

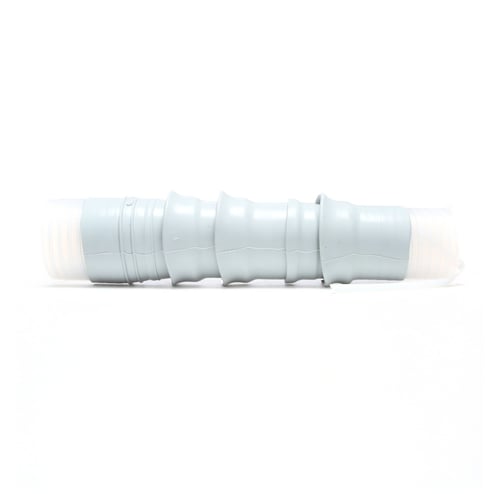

3M™ Cold Shrink QT II 5600 & 5680 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for concentric neutral cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 15kV.

Modified Industry Description

Cold Shrink 2/0 to 500 Termination Kit 6 Skirt

AD Description

3M™ 054007-09133 QT-II 5680 Cold Shrink Insulated Termination Kit With High-K Stress Relief, For Use With Concentric Neutral and Jacketed Concentric Neutral Cable, Silicone Rubber

Specifications

Application
Outdoor
Conductor Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4 AWG; 4/0 AWG; 400 kcmil; 500 kcmil
Country of Origin
US
Length1
14.8000
Special Features

  • Accommodates wire size of 3/0 AWG to 500 kcmil at 5 kV 100%, 2/0 AWG to 500 kcmil at 5 kV 133%/8 kV 100%, 1/0 AWG to 350 kcmil at 8 kV 133%, 4 to 4/0 AWG at 15 kV and 4 to 2/0 AWG at 25/28 kV

Standard
IEEE
Sub_Brand
3M
Type
QT-II
Voltage Rating
892.857/5k/8k/15k
