Hoffman Hoffman PPB245
Hoffman PPB245
Kirby Risk #: 2532539
UPC: 78351025619, 783510256197, 00783510256197
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
ProLine 200-mm Plinth Base, fits 400x500mm, Black, Steel
Modified Industry Description
BASE 400X500, 200MM PLINTH
AD Description

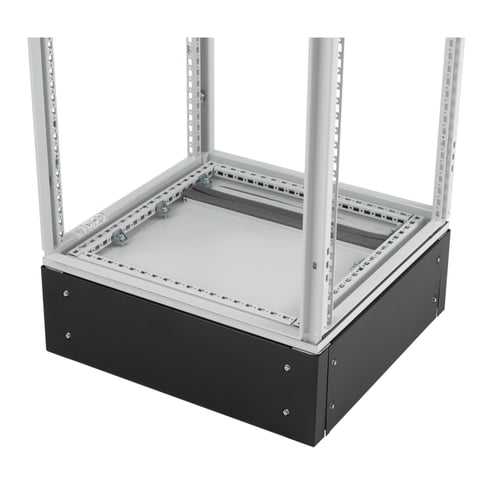

Hoffman Proline™ PPB245 P20 Plinth Base, 18.07 in H x 15.71 in W x 3.94 in D, For Use With 400 mm W x 500 mm D Frames, Steel, Black
Vendor Description
Plinth Bases install under an enclosure to provide space for cables to enter from below. A Plinth Base consists of eight corner supports connected to four access panels. The corner supports are cast aluminum. The access panels are 16 gauge steel and attach to the corner supports with screws. Plinth Bases have are finished with RAL 9005 black textured polyester powder paint and include all necessary mounting hardware. Order a gland plate system to provide Type 12 protection when using a plinth base.
Specifications
| Application |
Controls and Drives; Power Distribution
|
|---|---|
| Color |
Jet Black
|
| Country of Origin |
US
|
| Finish |
Powder Coated
|
| Length1 |
24.5000
|
| Material |
Mild Steel
|
| Size |
fits 400X500mm
|
| Special Features |
|
| Sub_Brand |
ProLine
|
| Type |
External Mounting for ProLine Industrial Enclosures
|
