Hoffman Hoffman PPB1168
Hoffman PPB1168
Kirby Risk #: 2532523
UPC: 78351023479, 783510234799, 00783510234799
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
ProLine 100-mm Plinth Base, fits 1600x800mm, Black, Steel
Modified Industry Description
PLINTH BASE, 100MM
AD Description
Hoffman ProLine™ PPB1168 P20 Plinth Base, 100 mm H x 1599 mm W x 759 mm D, For Use With 1600 mm W x 800 mm D Frames, Steel, Black
Vendor Description

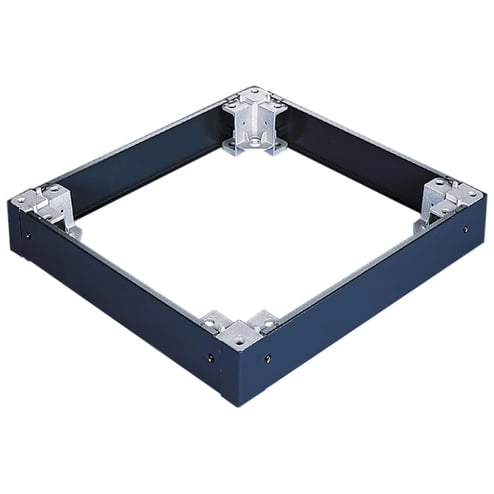

Plinth Bases install under an enclosure to provide space for cables to enter from below. A Plinth Base consists of four corner supports connected to four access panels. The corner supports are cast aluminum. The access panels are 16 gauge steel and attach to the corner supports with screws. Plinth Bases are finished with RAL 9005 black textured polyester powder paint and include all necessary mounting hardware. Order a gland plate system to provide Type 12 protection when using a Plinth Base.
Specifications
| Application |
Plinth Bases install under an enclosure to provide space for cables to enter from below. A Plinth Base consists of four corner supports connected to four access panels., The corner supports are cast aluminum. The access panels are 16 gauge steel and attac
|
|---|---|
| Color |
Black
|
| Country of Origin |
MX
|
| Finish |
Polyester Powder Coated
|
| Length1 |
73.0000
|
| Material |
Steel
|
| Series |
P20
|
| Size |
29.88 in H x 62.95 in W x 3.94 in D
|
| Special Features |
|
| Sub_Brand |
Hoffman
|
| Type |
100-mm Plinth Base
|
