Hoffman Hoffman PCDS8SS


Description

Industry Description

Consolet Compartment, fits 800mm PC/SY, SS Type 304

Modified Industry Description

CONSOLET COMPARTMENT

AD Description

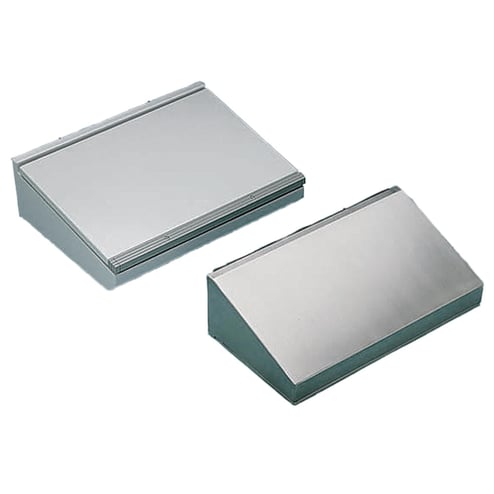

Hoffman ProLine™ PCDS8SS P20 Consolet Compartment, 6.89 in H x 31.17 in W x 17.64 in D, 304 Stainless Steel

Vendor Description

Provides sealed compartment for keyboard storage or protection for controls. Hinged door allows easy access to compartment. Door support holds door open at 90 degrees. Two quarter-turn integral latches are incorporated into the front edge of steel compartment doors. Foam-in-place gasket on door and gasket around open rear surface extend the UL and CSA rating to the consolet compartment interior. Compartment is 14 gauge steel finished with RAL 7035 textured light-gray polyester powder paint. Ground studs and mounting hardware are provided. The Flush Keylock (PSTLO) is available as an accessory.

Specifications

Application
Controls and Drives
Color
Light Gray
Country of Origin
US
Finish
Polyester Powder Coated
Length1
32.5000
Material
Stainless Steel
Series
P20
Size
fits 800mm PC/SY
Special Features

  • Access cover is available for applications not requiring a keyboard or controls
  • An integrated elastomer keyboard/mouse combination is available on some models of the keyboard shelf accessory
  • Compartment is type 304 stainless steel or 14 ga steel finished with RAL 7035 textured light gray polyester powder paint
  • Door support holds door open at 90 deg
  • Each one is designed to fit into the accessory front opening of the ProLine™ HMI sloped front
  • Foam-in place gasket on door and gasket around open rear surface extend the UL and CSA rating to the consolet compartment interior
  • Hinged door allows easy access to compartment
  • Keyboard has 101 keys
  • Provides sealed compartment for keyboard storage or protection for controls
  • Supplied cables are compatible with USB connections
  • Two quarter turn integral latches are incorporated into the front edge of steel compartment doors
Sub_Brand
ProLine
Type
Mild Steel Modular Industrial Enclosures
