Burndy Burndy B241


Description

Industry Description

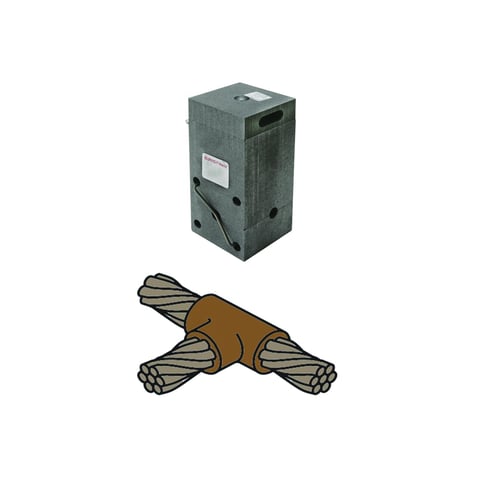

Mold, Horizontal Cable Tap to Horizontal Cable Run, 4/0 AWG (Run & Tap), 150 Weld Metal.

AD Description

BURNDY® Weld® B241 Type BCC-2 Weld Metal Mold, 4/0 AWG Conductor, Horizontal Cable Tap to Horizontal Cable Run

Vendor Description

BURNDYWeld® Weld Metal is packed in moisture-resistant plastic cartridges that have tight fitting caps. These cartridges, along with the necessary steel discs, are then packed in boxes that are hermetically sealed. This ensures the powder arriving in good condition, always dry and ready for fast positive ignition. BURNDYWeld® Weld Metal comes in several types one for welding copper to copper, copper to steel, copper to rail, copper to cast iron and one for welding copper to steel for cathodic protection. The size and weight (in grams) of the cartridge are marked on each individual cartridge.

Specifications

Application
For Joining Horizontal Cable Tap To A Horizontal Run Cable
Country of Origin
US
Length1
7.9375
Special Features

  • B38-0309-00 flint igniter, cartridge required tools
  • B40-0319-03 mold cleaner for cartridge sizes #90 - #500, B38-3922-00 mold cleaning brush, B38-0135-00 cable cleaning brush, B38-0330-00 cable clamp recommended accessories
  • Size range is 6 AWG through 750 kcmil concentric stranded copper conductors
  • Standard cartridge
  • Type BCCC-2 molds are used to join horizontal cable tap to a horizontal run cable, size range is 6 AWG through 750 kcmil concentric stranded copper conductors, conductor type: concentric stranded copper
Standard
Buy American Act Compliant (All status valid till December 2024)
Sub_Brand
BURNDYWELD
Type
Molds
