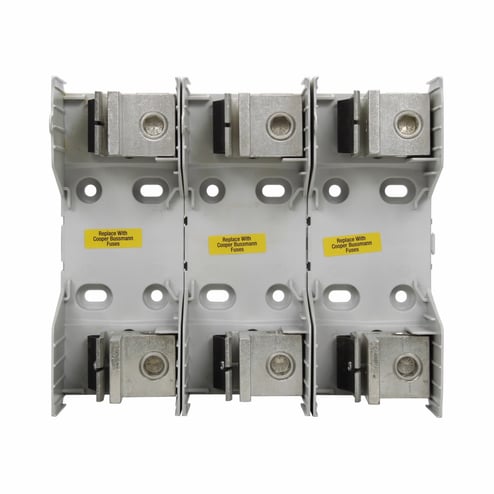

Bussmann Bussmann RM25400-3CR

Name: Bussmann RM25400-3CR
Brand: Bussmann
SKU: 2526266
Price: 2596.99 USD
Availability: InStock

Bussmann RM25400-3CR

Kirby Risk #: 2526266

UPC: 05171238699, 051712386999, 00051712386999

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

FUSE HOLDER

Modified Industry Description

400A 250V - CLASS H 3 POLE MODULAR FUSEBLOCK W/ BOX LUG

AD Description

Bussmann RM25400-3CR Fuse Block, 250 VAC, 225 to 400 A, Class R, 600 kcmil, 4 to 3/0 AWG Wire, 3 Poles

Amperage Rating	400
Application	Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name	Bussmann
Class	R
Connection	Knife blade end x knife blade end
Country of Origin	MX
Material	Thermoplastic
Package_Quantity	1.000
Poles	3
Special Features	200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A) 600 kcmil, (2) 4 to 3/0 aluminum/aluminum AWG solid and stranded wire Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845) Integral dovetails allow assembly of multiple poles at point of use for greater application flexibility Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility Standard fuse clip reinforcing springs enhance electrical contact Standard phase barriers between poles for additional safety Up to four mounting holes per pole increase installation flexibility
Standard	Contact Manufacturer,RoHS Compliant
Sub_Brand	Bussmann Series
Type	Block
Voltage Rating	250
