Bussmann Bussmann AGC-6-1/4-R
Bussmann AGC-6-1/4-R
Kirby Risk #: 2525521
UPC: 05171265525, 051712655255, 00051712655255
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Bussmann
Description
Industry Description

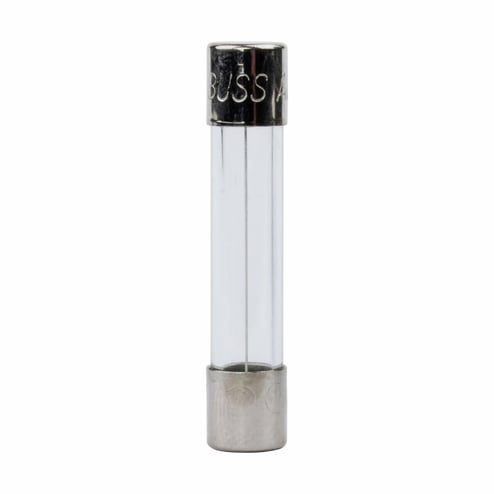

6-1/4A 250V 3AG - 1/4" x 1-1/4" RoHS Compliant Glass, Fast Acting Fuse
Modified Industry Description
6-1/4A 250V GLASS FAST ACTING FUSE 1/4 X 1 1/4 IN
AD Description
Edison AGC-6-1/4-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 6-1/4 A, 250 VAC, 200 A, 10 kA Interrupt, Cylindrical Body
Specifications
| Amperage Rating |
6.25A
|
|---|---|
| Application |
Ind Facilities & Factories - Facility: Safety and Security Systems
|
| Class |
B3
|
| Connection |
Ferrule End X Ferrule End
|
| Country of Origin |
TW
|
| Dimensions |
1.2500 X 0.2500 X 0.2500
|
| Interrupt_Rating |
10 kAIC at 125 Vac200 AIC at 250 Vac
|
| Length1 |
1.6250
|
| Material |
Glass tubeNickel-plated brass end cap construction
|
| Special Features |
|
| Standard |
CE Marked,RoHS Compliant
|
| Sub_Brand |
Bussmann Series
|
| Type |
Fast-acting glass tube fuse
|
| Voltage Rating |
250 Vac, 32 Vdc (self certified)
|
