Southwire Southwire THHN-SOL-12-GRA/PUR/SR-CU-2000


Description

Industry Description

12 SOL SD CU SIMpull (TM) THHN-THWN GRAY-PURPLE 2000 FT

Modified Industry Description

12 THHN SOLID SIMPULL GRAY/PURPLE STRIPE COILPAK 2000 FT COPPER

AD Description

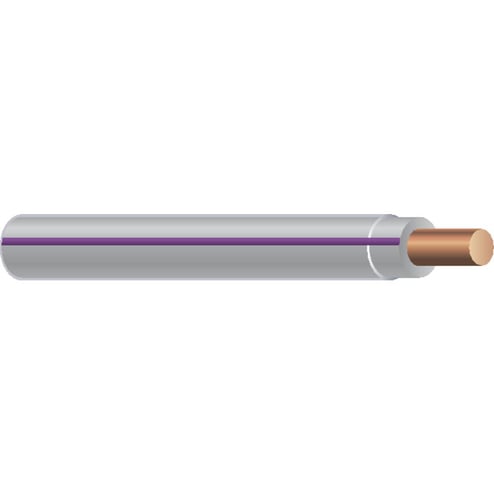

Southwire® SIMpull® THHN® 58026305 Type Spool Proof THHN Building Wire, 600 VAC, (1) 12 AWG Solid Copper Conductor, 2000 ft L, Gray/Purple

Vendor Description

The little brother to our original offering, the SIMpull® CoilPAK™ mini wire payoff provides the same benefits, but in a smaller size. The 25 lb payoff, even more versatile and convenient, fits into service trucks and man lifts as the perfect solution for those smaller pulls that every jobsite requires. The CoilPAK™ mini payoff features NoLube® SIMpull® THHN® circuit wire, providing a solution contractors prefer; ergonomically designed for pulling wire out of the package and into the conduit. The built-in handle allows for easy jobsite maneuverability and the fully encased, durable, recycled plastic packaging protects the wire- giving the contractor multiple pulling options. The SIMpull® CoilPAK™ mini wire payoff is available in solid or stranded, SIMpull® THHN® copper wire and cable, single or multiple wire packages with stripe neutral options. No additional tooling is required.

Specifications

Amperage Rating
20
Application
Commerical
Brand Name
Southwire
Color
Gray with Purple Stripe
Conductor Material
Copper
Conductor Type
Solid Copper
Conductor Size
12
Country of Origin
USA
Insulation_Material
PVC
Jacket_Material
Nylon
Number Of Conductors
1
Package_Quantity
2000
Special Features

  • Designed to help reduce potential lifting/ handling/pulling injuries
  • Easier installs dramatically reduce your planning time and overall waste
  • Eliminate spools and additional material handling from the jobsite
  • Extruded striped neutrals are standard in our CoilPAK payoff offering
  • FT1 - rated on all sizes
  • Grab it, haul it, lift it, pull it
  • Heat, moisture, gasoline and oil resistant
  • Increased wire length leads to reduced scrap
  • Innovative design not only protects the wire, it allows you to stack and payoff directly from package into conduit
  • No lube
  • Package fully encasesandhelps protect wire
  • Reduce install time, labor and material waste on the jobsite
  • SIMpull® NoLUBE® wire jacket eliminates the need for lubrication
  • Stackable when pulling single circuit- up to 3 high
  • The versatile design has options for every jobsite scenario
  • THHN or T90 Nylon- dry locations not to exceed 90 deg C
  • Voltage for all applications is 600 volts
  • VW-1 - rated on sizes 14 through 1 AWG

Sub_Brand
Southwire
Type
THHN
Voltage Rating
600
