Panduit Panduit LCD10-14D-L

Name: Panduit LCD10-14D-L
Brand: Panduit
SKU: 2521268
Price: 1015.87 USD
Availability: InStock

Panduit LCD10-14D-L

Kirby Risk #: 2521268

UPC: 07498397379, 074983973798, 00074983973798

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

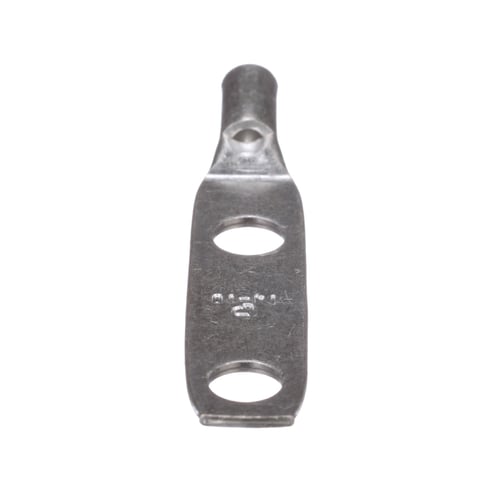

Two-hole, standard barrel lug with window, #10 AWG wire, 1/4 stud hole, 1 hole spacing.

Modified Industry Description

COPPER COMPRESSION LUG, 2 HOLE, #10

AD Description

Panduit® Pan-Lug™ LCD10-14D-L 2-Hole Compression Connector Lug, 12 to 10/14 to 10 AWG Solid/Stranded Copper Conductor, 42826 in Stud, Copper

Color	—
Conductor Type	Solid/Stranded Copper
Conductor Size	14 to 10/12 to 10
Country of Origin	MEX
Length1	4.1500
Material	Tin Plated Copper
Mounting	7/16
Series	LCD
Size	#14 – #10 Code STR, #12 – #10 Code SOL
Special Features	14 to 10 AWG stranded, 12 to 10 AWG solid Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V For use with stranded copper conductors Inspection window to visually assure full conductor insertion Tin plated to inhibit corrosion
Standard	CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
