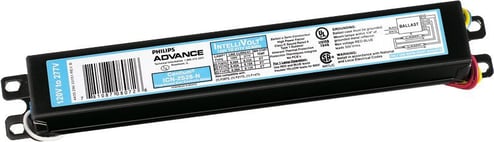

Philips Advance Philips Advance ICN2S39N35M


Description

Industry Description

Ballast, Lamp Type: T5, Number Of Lamps: 2, _BALLAST TYPE: Electronic Fluorescent, Voltage Rating: 120-277V, Wattage: 39 WTT

Modified Industry Description

ELECTRONIC BALLAST FOR 2 F39T5/HO 120 TO 277V

AD Description

Advance Centium® ICN2S39N35M High Frequency Linear N-Can Electronic Fluorescent Ballast, T5/HO Lamp, 39 W, 120 to 277 VAC, Programmed, 0.99 Ballast Factor

Vendor Description

Reliable and robust, this broad line of Centium® high frequency electronic ballasts for t5, T5HO, T8 and T12 fluorescent lamps offers all of the necessary commercial grade specifications plus the added benefits of lamp striation reduction technology making these ballasts compatible with energy saving T8 lamps. This provides your customers with a better energy saving solution than when using standard T8 ballast. Our Centium® ballasts are an optimal choice for a broad range of new construction and retrofit applications within the commercial sector, including general office lighting, conference, meeting and board room applications, indirect and decorative lighting and new fixture designs requiring smaller ballasts.

Specifications

Amperage Rating
0.3 to 0.71
Ballast_Factor
0.99
Brand Name
Philips Advance
Country of Origin
USA
DIMMABLE
False
Frequency_Rating
50/60
Lamp_Type
F39T5/HO Linear
Material
Metal
Minimum_Starting_Temperature
0
Number_Of_Lamps
2
Power_Factor
0.98
Special Features

  • 20 to 24 dB average ambient noise level of interior
  • 35M - ballast case packaged
  • Blue label color coding
  • For T5, T8, T12 and long twin tube fluorescent lamps
  • High power factor
  • IntelliVolt multiple voltage technology enables operation from 120 to 277 VAC, 50/60 Hz
  • Philips Advance fluorescent electronic and magnetic ballasts are designed and manufactured to engineering standards correlating to an average life expectancy of 50000 hr of operation at maximum rated case temperature
  • Series lamp connection
  • Sound rated A
Start_Type
Programmed
Sub_Brand
Philips Advance
Total_Harmonic_Distortion
10%
Type
Electronic High Frequency N-Can Housing
Vendor
Signify
Voltage Rating
120 to 277
Wattage
85/83
