Panduit Panduit LCDX1/0-14A-X


Description

Industry Description

Two-hole, flex lug, 1/0 AWG wire, 1/4 stud hole, .63 hole spacing.

Modified Industry Description

Copper Compression Lug, 2 Hole, 1/0

AD Description

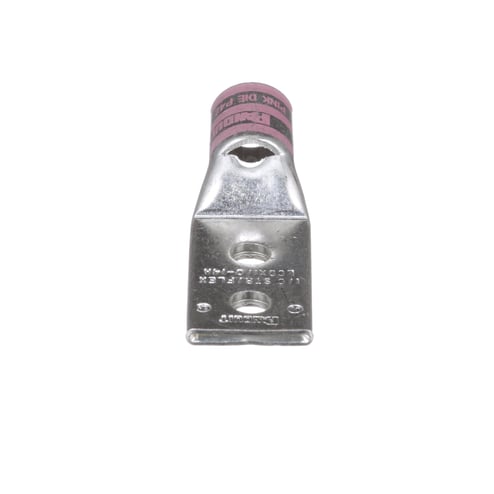

Panduit® Pan-Lug™ LCDX1/0-14A-X 2-Hole Compression Lug, 1/0 AWG Class B, C, G, H, I, K, M and DLO Copper Conductor, Die Code: P42, 1/4 in Stud, Tin Plated Copper

Specifications

Color
Pink
Conductor Type
Copper
Conductor Size
1/0 AWG Class B, C, G, H, I, K, M and DLO
Country of Origin
MEX
Length1
4.6500
Material
Tin Plated Copper
Mounting
3/4
Series
LCDX
Size
1/0 Class B, C, G, H, I, K, M and DLO
Special Features

  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
  • Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Inspection window to visually assure full conductor insertion
  • Tin-plated to inhibit corrosion
Standard
C22.2 No. 65-13, 486A-486B File #E52164
Sub_Brand
Panduit
Temperature_Rating
90
Type
2-Hole
Voltage Rating
35
