Southwire SOUTHWIRE BUS DROP-2/3-GRAY-CUT
Southwire BUS DROP-2/3-GRAY-CUT
Kirby Risk #: 2509775
UPC: 03288686777, 032886867774, 00032886867774
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
2-19 3/C BUS DROP 600V GRAY JACKET 500 FT
Modified Industry Description
2/3 BUS DROP GRAY 500 FT
AD Description
Southwire® 55213002 Bus Drop Cable, 600 VAC, (3) 2 AWG Bare Stranded Copper Conductor, 500 ft Reel L
Vendor Description

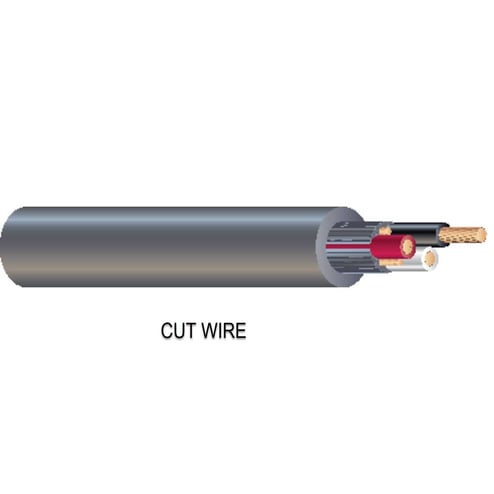

Southwire Bus drop cable is constructed using sizes 14 AWG through 2 AWG annealed stranded bare copper per ASTM B-8 or B-174, as applicable. The conductors are insulated with Premium-grade, PVC insulation with a clear nylon jacket and are colored black, white, and red. The conductors and ground wires along with paper or polypropylene fillers are cabled for flexibility then wrapped with a mylar separator to aid strippability. The cable is covered with a gray PVC jacket. Cable is rated for indoor and outdoor use in wet or dry locations.
Specifications
| Amperage Rating |
95
|
|---|---|
| Brand Name |
Southwire
|
| Color |
Gray
|
| Conductor Material |
Copper
|
| Conductor Type |
Bare Stranded Copper
|
| Conductor Size |
2 AWG
|
| Core |
2
|
| Country of Origin |
USA
|
| Insulation_Material |
PVC
|
| Jacket_Material |
PVC
|
| Number Of Conductors |
3
|
| Outside_Diameter |
1.071
|
| Package_Quantity |
500
|
| Special Features |
|
| Standard |
UL509
|
| Sub_Brand |
Royal?®
|
| Type |
Bus Drop
|
| Voltage Rating |
600
|
