Siemens Siemens E1SED43B100SN
Siemens E1SED43B100SN
Kirby Risk #: 2509498
UPC: 78364320533, 783643205338, 00783643205338
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

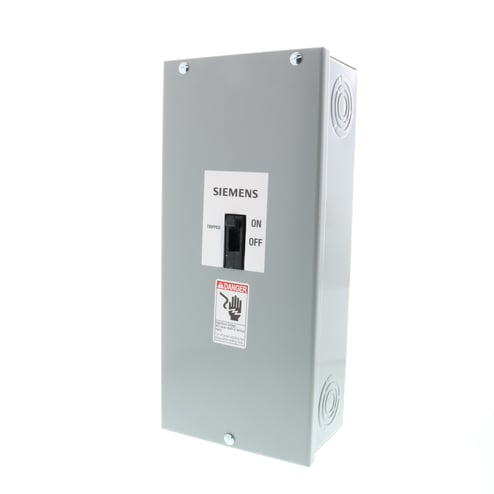

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 100A 3-POLE 480V STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY (ED43B100). NON-INTERCHANGEABLE TRIP UNIT. NEMA TYPE 1 ENCLOSURE SURFACE MOUNTED (E2N1S) WITH NEUTRAL (W53045). INCLUDES LINE AND LOAD SIDE LUGS (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). ACCESSORIES INCLUDED (S01ED60) ENCLOSURE DIMENSIONS (W x H x D) IN 7.50 x 16.72 x 5.06.
Modified Industry Description
ENCL1S BRKR ED4 3P 480V 100A ST1
AD Description
Siemens Sentron™ E1SED43B100SN Type ED4 Low Voltage Molded Case Circuit Breaker, 480 VAC, 100 A, 18 kA Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Amperage Rating |
100
|
|---|---|
| Country of Origin |
MX
|
| Dimensions |
17 in L x 8 in W x 6 in H
|
| Enclosure |
TYPE 1S
|
| Environmental_Conditions |
Indoor
|
| Frame |
ED
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
18
|
| Length1 |
17.0000
|
| Mounting_Type |
Surface
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
(-25C -- 75C) AMBIENT TEMPERATURE
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
-25 to 75
|
| Type |
Type ED4 Low Voltage
|
| Voltage Rating |
480
|
