Hubbell Hubbell HBL8300RMRI

Name: Hubbell HBL8300RMRI
Brand: Hubbell
SKU: 2509342
Price: 83.23 USD
Availability: InStock

Hubbell HBL8300RMRI

Kirby Risk #: 2509342

UPC: 78358514866, 783585148663, 00783585148663, 30783585148664

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hospital Grade, MRI Series, 20A 125V, 2-Pole 3-Wire Grounding,5-20R, Red

Modified Industry Description

20A 125V RECPT RED HOSPITAL MRI

AD Description

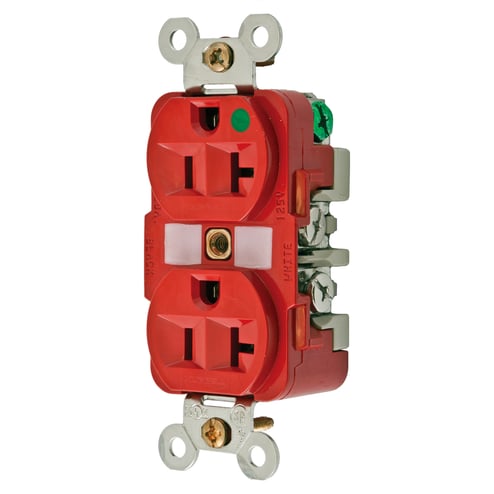

Hubbell® HBL8300RMRI MRI Grounding Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red

Amperage Rating	20
Application	Hospital Grade
Color	Red
Connection	Back and Side Wired Screw Terminals
Conductor Size	#14 AWG to #12 AWG
Country of Origin	US
Environmental_Conditions	Indoor Dry unless Protected by Additional Means
Length1	4.1600
Material	Thermoplastic
Mounting	Screw Mount
NEMA_Rating	5-20R
Number_Of_Poles	2
Phase	1
Series	Hospital Grade
Size	Standard Sized Product
Special Features	0.025 in (0.6) brass ground contacts 0.036 in (0.9) nickel plated brass bypass power contacts 0.05 in (1.3) nickel plated brass mounting strap 1-piece nickel plated brass integral ground strap 12 to 10 AWG stranded/solid copper wire only All non-ferrous for MRI labs Bronze mounting screw I.D. marking surface helps in quick circuit identification ID marking surface helps in quick circuit identification Nickel plated brass clamp One piece nickel plated brass integral ground strap PBT base Plated brass terminal screw UL 94 V-2 flammability Unique bypass contact design Withstands 2000 VAC minimum dielectric voltage
Standard	NEMA WD1 and WD5, UL 498
Sub_Brand	Hubbell Wiring Device-Kellems
Type	Traditional Duplex
Voltage Rating	125
Wattage	2,500
