Panduit Pan-Net Panduit Pan-Net CJE688TGBL


Description

Industry Description

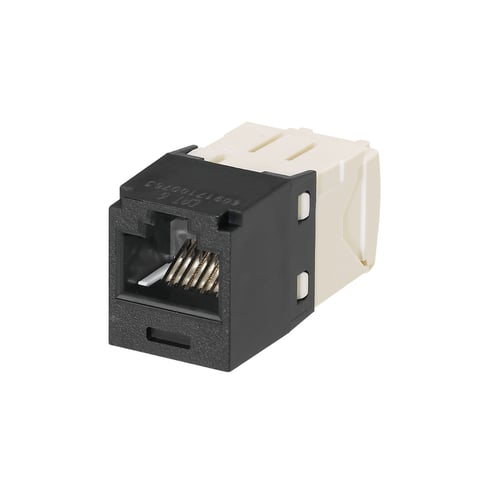

Category 6, RJ45, 8-position, 8-wire, universal, corrosive resistant UTP jack module Black.

Modified Industry Description

CAT 6 BLACK CORROSIVE RESISTANT MINI MODULE

AD Description

Panduit® TX6™ PLUS CJE688TGBL 8-Position 8-Wire RJ45 Corrosive TG Style Resistant Unshielded UTP Jack Module, Cat 6/Mini-Com® Module, Surface Mount, 1 Port, ABS/Polycarbonate, Black

Specifications

Application
Unshielded
Brand Name
Panduit Pan-Net
Cable_Entry
T568A/T568B
Color
Black
Country of Origin
CRI
Material
ABS/Polycarbonate
Model
Bus (jack)
Number_Of_Ports
1
Slot_Capacity
1
Special Features

  • Can be clearly identified with optional labels and icons for port identification
  • Conductor retention slots simplify jack module termination
  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Controls cable bend radius for long term installed performance
  • Enables operations in environments up to 70 deg C, ideal for use in warm temperature environments or network hot spots
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords backwards compatible
  • Marked with quality control number for future traceability
  • Optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Protects electrical contacts and internal components by reducing the ingress of moisture and other corrosive elements such as salt, providing improved long term performance, operation life 75+ insertions
  • UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
Standard
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand
Panduit
Type
8-Position 8-Wire RJ45 Corrosive TG Style Resistant Unshielded
Width_2
7.3000
Width_3
7.3000
