3M 3M MVU18-250DMFX-A
3M MVU18-250DMFX-A
Kirby Risk #: 2504526
UPC: 05112858874, 051128588741, 00051128588741
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

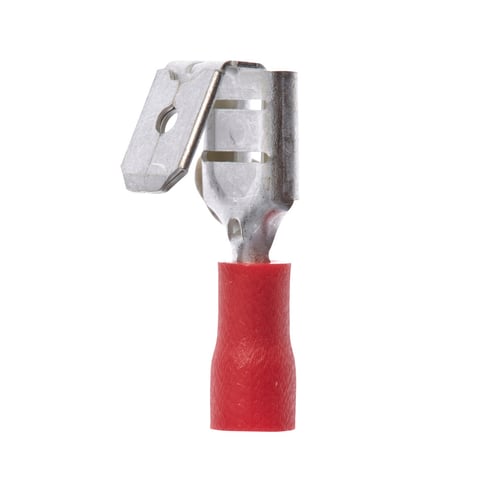

3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.
Modified Industry Description
PIGGY-BACK DISCONNECT MALE FEMALE
AD Description
Scotchlok™ 051128-58874 Piggyback Disconnect Terminal, 22 to 18 AWG, 0.87 in L, ETP Copper, Red
Vendor Description
3M™ Scotchlok™ color-coded Male-Female disconnect terminal provides permanent electrical and mechanical connection to a pre-stripped end of a stranded copper wire. It has a butted seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position. It has an abrasion-resistant, flared, vinyl-sleeve insulation to ensure easy crimping and the terminal withstands temperatures of -40 to 221 degrees F (-40 to 105 deg C).
Specifications
| Color |
Red
|
|---|---|
| Conductor Size |
22 to 18 AWG
|
| Country of Origin |
TWN
|
| Dimensions |
0.032 in THK
|
| Length1 |
0.87 in
|
| Material |
ETP Copper
|
| Special Features |
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-40 to 221 deg F
|
| Type |
Piggyback
|
| Voltage Rating |
600 VAC
|
