Lutron Lutron RR-3PD-1-SW


Description

Industry Description

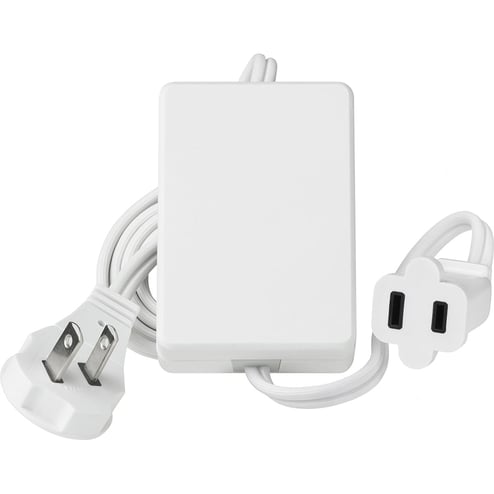

RadioRA 2 Plug-in Module, Incandescent/Halogen, Magnetic Low-Voltage, 1-receptacle dimming module, 300W/300VA in snow

Modified Industry Description

RA2 PLUGIN DIMMER 300W

AD Description

RadioRA® 2 RR-3PD-1-SW Dimming Module, 300 VAC

Specifications

Application
Lighting Control
Color
Snow White
Connection
Screw Terminals
Country of Origin
MX
Enclosure
Plastic
Environmental_Conditions
0% to 90% humidity, non-condensing. Indoor use only.
Finish
Satin
Frequency_Rating
431.0 MHz and 437.0 MHz
Insulation
Plastic
Length1
2.3000
Material
Plastic Metal
Mounting
Wallbox
Number_Of_Poles
1
Operating_Temperature
0 °C to 40 °C
Size
3.25 in (83 mm) X 2.25 in (57 mm)
Special Features

  • 0 to 40 deg C ambient operating temperature
  • 0.3 W power consumption
  • Also incorporates advanced features such as fade On/fade Off, delayed long fade Off and rapid full On
  • Control non-dimmable lighting loads in switching mode
  • Functions much like standard lamp dimmers
  • Humidity 0 to 90% non-condensing, indoor use only
  • Light levels can be fine tuned by pressing and holding the raise/lower buttons until the desired light level is reached
  • On a double tap of the toggle button, lights go to full ON
  • On a single tap of the toggle button, lights fade ON or OFF
  • Plug-in modules are simple to install and easy to use
  • The RR-3PD-1 is designed to dim one incandescent, magnetic low voltage or tungsten halogen table or floor lamp
  • They can be hidden behind furniture or appliances
  • Two plug-in modules are simple to install and easy to use
  • When ON, press and hold the toggle button to engage the delayed long fade to OFF
Standard
cUL, UL, FCC, IC, SCT, NOM
Sub_Brand
Lutron
Type
RF Plug-In Module
Voltage Rating
300
Wattage
300
