RAB Lighting RAB Lighting BAYLED78W


Description

Industry Description

HIGHBAY 78W COOL LED 3X26W WITH HOOK AND CORD WHITE

Modified Industry Description

78W 5000K WHITE LED W/ HOOK AND CORD

AD Description

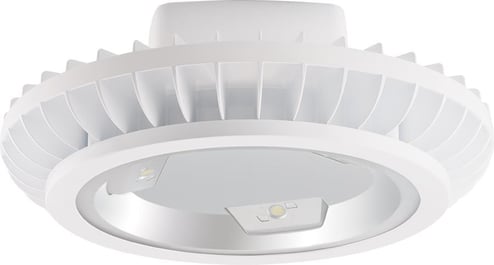

RAB BAYLED78W High Bay Fixture With Hook and Cord, LED Lamp, 89 W Fixture, 120/208/240/277 VAC, White Housing

Vendor Description

78 W BAYLED high bay replaces 250 W MH high bays, reducing energy consumption by 67%. Suitable for large spaces, including warehouses, factories and distribution centers.

Specifications

Amperage Rating
0.82 A, 0.52 A, 0.45 A, 0.4 A
Application
Indoor
Average_Life
100000
Ballast_Type
Class 2 Constant Current
Brand Name
RAB Lighting
Color
White
Color_Rendering_Index_CRI
72
Color_Temperature
5100
Country of Origin
CN
Fixture_Type
LED High bays
Lamp_Type
LED
Lens_Type
Tempered Glass
Lumens
11311
Mounting
"Heavy-duty 3/4"" NPS hook and 3 foot safety chain"
Special Features

  • 0.82 A at 120 VAC, 0.52 A at 208 VAC, 0.45 A at 240 VAC and 0.4 A at 277 VAC amperage ratings
  • 100000 hr LED lifespan based on IES LM-80 results and TM-21 calculations lifespan
  • 3 multi-chip, 26 W high output, long life LEDs
  • 7-step MacAdam ellipse binning to achieve consistent fixture to fixture color
  • Heavy duty 3/4 in NPS hook and 3 ft safety chain
  • High temperature silicone gaskets
  • LED color temperature is warranted to shift no more than 200 K in CCT over a 5 years period
  • Mercury and UV-free, polyester powder coat finish formulated without the use of VOC or toxic heavy metals
  • Our environmentally friendly polyester powder coatings are formulated for high durability and long-lasting color and contains no VOC or toxic heavy metals
  • Precision die cast aluminum housing and door frame with 3 ft 600 VAC power cord
  • Reduces energy consumption up to 67%
  • Replaces 250 W metal halide high bays
  • Specular vacuum metalized polycarbonate
  • Suitable for use in 55 deg C ambient temperature
  • Superior thermal management with external airflow fins
Standard
Replaces 250W MH high bays
Sub_Brand
RAB Lighting
Type
Bay Lighting
Voltage Rating
120/277
Wattage
78
