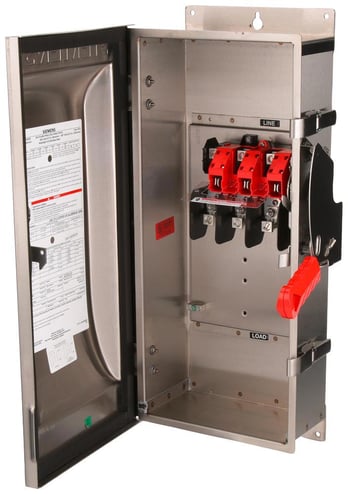

Siemens Siemens HNF363SS


Description

Industry Description

Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 3-Wire Non-Fused in a type 4/4X 316 grade Stainless Steel enclosure. Rated 600VAC (100A).

Modified Industry Description

100A 3P 600V NO FUSE HDSS 316SS 4X

AD Description

Siemens HNF363SS Enclosed Heavy Duty Low Voltage Non-Fused Safety Switch With Insulation, 600 VAC, 100 A, 100 hp, TPST Contact, 3 Poles

Vendor Description

30 to 200 A, 600 VAC maximum fusible and non-fusible switches are available in both non-metallic and 316 grade stainless steel versions. all are supplied with factory installed ground bars as standard. viewing windows are also available in the stainless offering.

Specifications

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage Rating
100
Application
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection
MECHANICALLUGS
Country of Origin
MX
Dimensions
25 in H x 10.43 in W x 10.46 in D
Enclosure
Type 4X
Environmental_Conditions
INDUSTRIAL CORROSIVE RESISTANCE
Frequency_Rating
60
Horsepower
100
Length1
22.2000
Material
316 Stainless Steel
Mounting
2 OR 3 POINT MOUNTING HOLES
Mounting_Type
Surface
Number_Of_Poles
3
Operating_Temperature
(-20F-120F) AMBIENT TEMPERATURE
Special Features

  • Arc chutes dissipate heat and prolong switch life
  • Center punch provided for field drilling to allow on padlocking
  • Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
  • Door latch securely holds door closed and allows cover padlocking
  • Drawn cover for increased rigidity and resistance to abuse
  • Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
  • Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors
  • Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements
  • Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
  • Highly visible red handle grip designed for hook stick operation
  • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
  • Informative door labeling which includes replacement parts list
  • Lugs are field convertible to copper body and to a wide variety of compression connectors
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Side hinged door that opens 180 deg for easier wiring
  • Spring reinforced fuse clips that assure reliable contact for cool operation
  • Tangential knockouts through 600 A for easy conduit lineup
  • Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
  • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
  • Visible blade, double break switching action
Standard
UL
Sub_Brand
Siemens
Temperature_Rating
-20 to 120
Type
Enclosed Low Voltage Non-Fused
Voltage Rating
600
