3M 3M 10024
3M 10024
Kirby Risk #: 2501069
UPC: 05400712931, 054007129318, 00054007129318
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description
They are designed to connect copper conductors. Each connector is electro-tin plated to resist electrolytic corrosion. They are installed using standard industry tooling. Chamfered ends and an integral center cable stop ensure simplicity and ease of conductor insertion.
Modified Industry Description

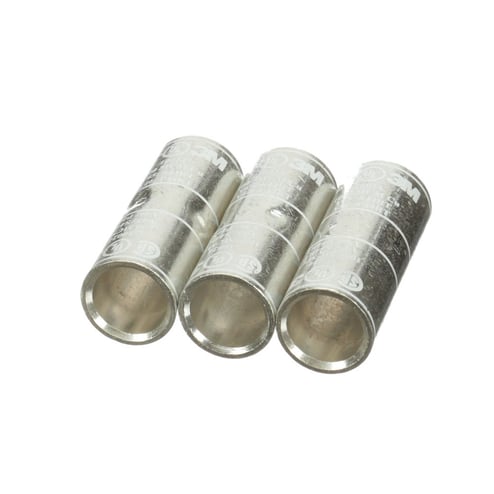

COPPER STANDARD BARREL CONNECTOR
AD Description
Scotchlok™ 054007-12931 Compression Splice Connector, 35 kV, 1000 kcmil Wire, Copper
Specifications
| Application |
Copper Conductor Only
|
|---|---|
| Color |
White
|
| Country of Origin |
CL
|
| Dimensions |
3.88 in OAL
|
| Length1 |
4.6250
|
| Material |
Copper
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
3M
|
| Temperature_Rating |
73 to 194 deg F
|
| Type |
Compression
|
| Voltage Rating |
35 kV
|
